HongEr Decoiler Straightener Servo Feeder 3 in 1 Machine GLK4-600H

Group Metal Strip Feeder
Min. Order 1 set
Terms of Payment L/C, T/T
Update Time 2018-12-09
Item specifics
DecoilerHydraulic Expansion, Motorized, Automatic
StraightenerGear drive
Servo FeederYaskawa Driver and Yaskawa Motor
Oiling MachineTo lubricate and cool down the coil sheet, prolongs the lifespan of dies
ShearerTo cut off coil threads
Coil WeightUp to 5 tons weight
Coil Width100-600 mm wide
Coil Thickness0.6-6.0 mm thick
Auxillary rollersEquipped
Rollers qualityMaterial :GCr15 high quality bearing material. Thickening plating and Grinding processing. Hardness: HRC60-65

Specifications of GLK4-600H

Decoiler Straightener Feeder 3 in 1 Machine for High Tensile Metal Materials

Applicable Material SPCC, SPHC, Galvanized coil, Aluminium coil etc.
Material Strength Tensile Strength ≤ 588MPa; Yield Strength ≤ 368MPa
Suitable Coil Width 100-600mm
Applicable Material Thickness 0.6-6.0mm
Feeding Length 0-9999.99mm
Inside Coil Diameter 475-520mm
Outside Coil Diameter ≤ 1500mm
Coil Weight ≤ 5T
Ambient Temperature Relative Humidity Power Supply AC 480V±10%, 50Hz ±2%
3-phase-5-wire system (Can be customized)
Pneumatic Pressure 0.5MPa
Running Direction  From left to right
Machine Power About 10kW
Equipment Size L: 4429mm, W: 2763mm, H: 2300mm

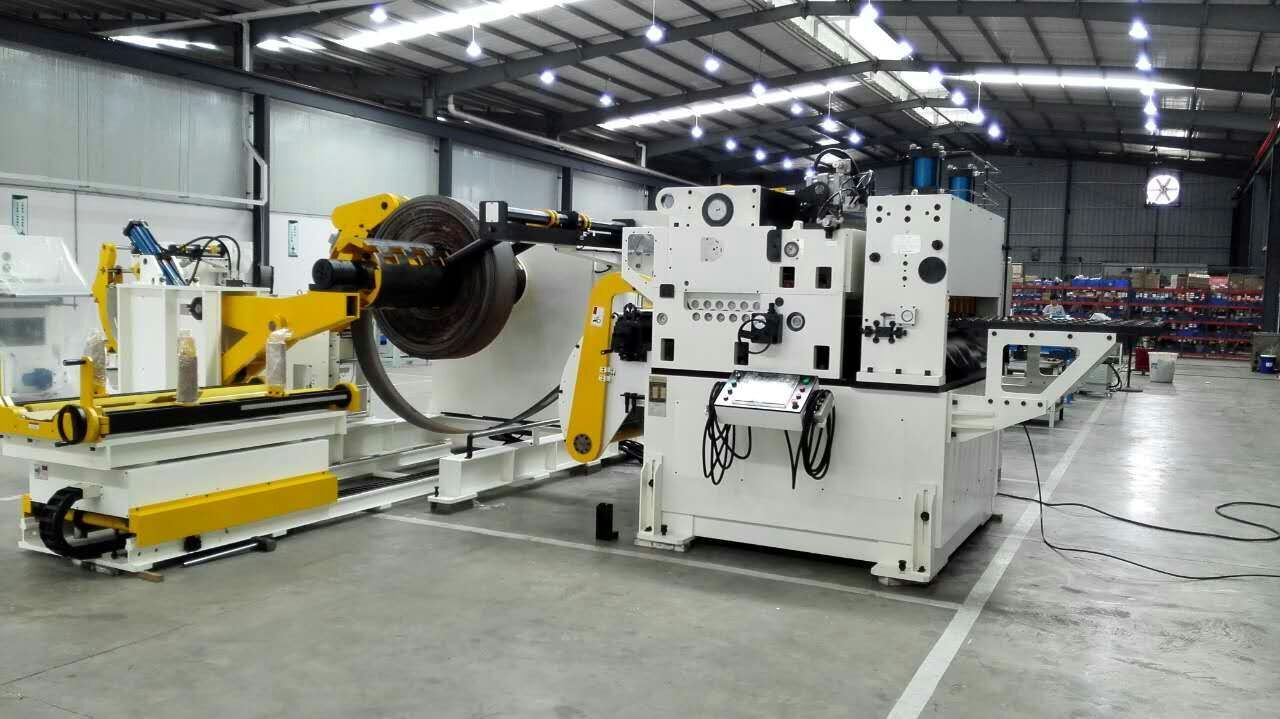

Machine Picture for Reference

HongEr Decoiler Straightener Feeder 3 in 1 Machine GLK4-600H for High Tensile Metal Sheets 6.0 mm Thick

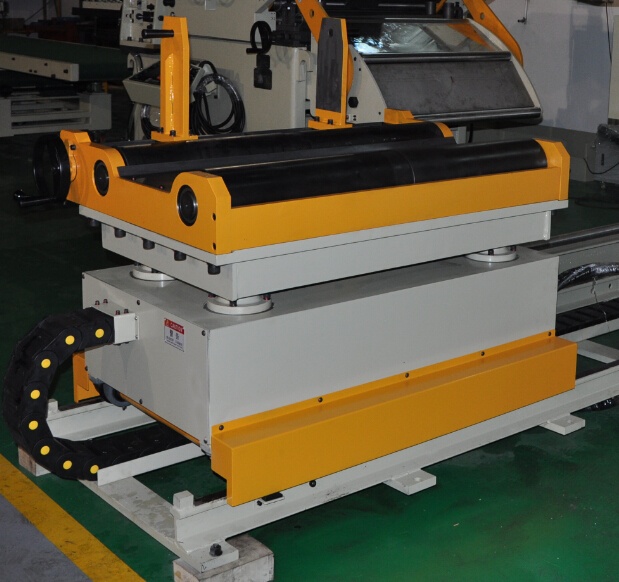

Coil Car

High Quality Coil Car with 4 Columns Hydraulic Lifting

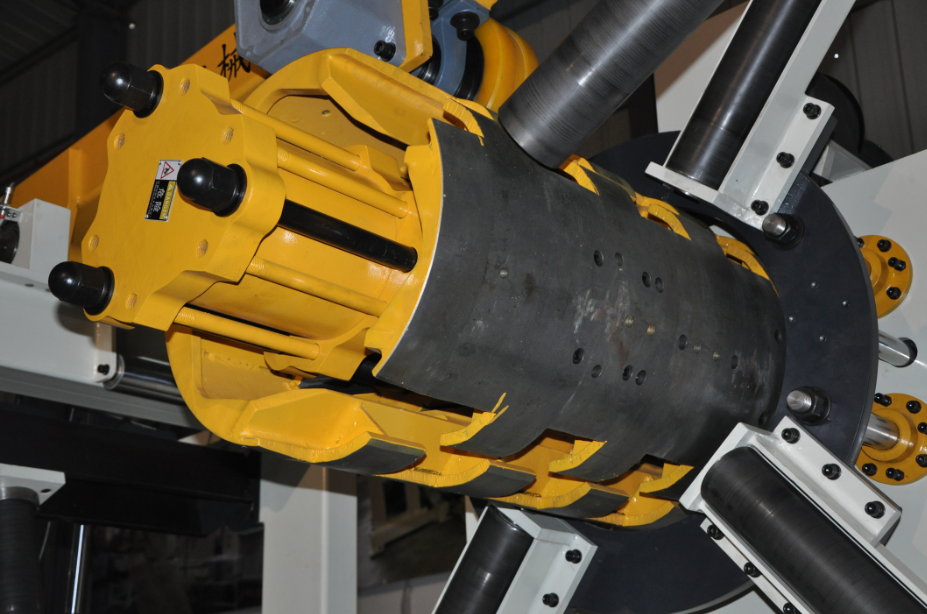

Coil Loading Mandrel on Decoiler

HongEr Decoiler Loading Mandrel

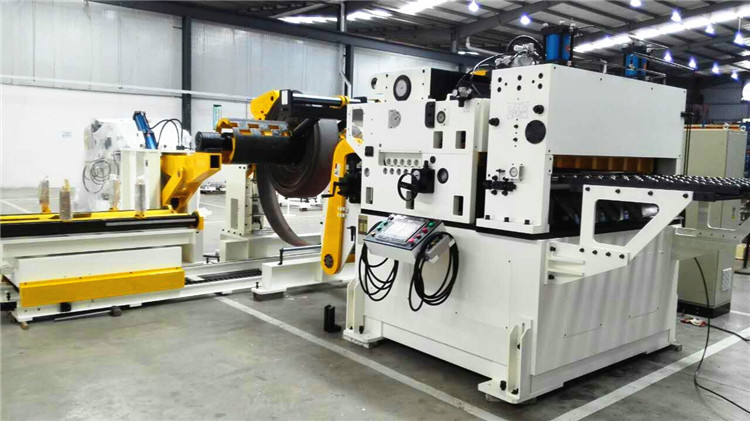

Straightener, NC Servo Feeder and Hydraulic Shearer Unit

HongEr Servo Straightener Feeder

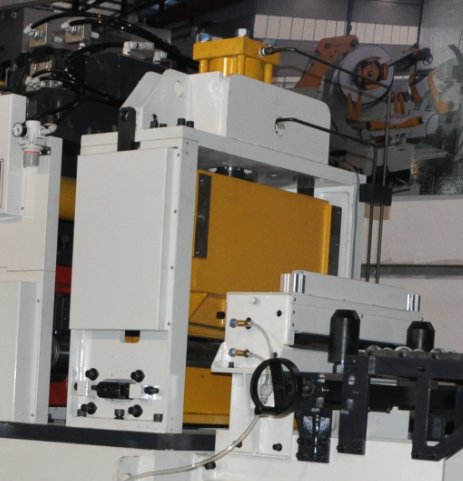

Hydraulic Shearer Unit Behind NC Servo Feeder

HongEr Hydraulic Shearer after Servo Feeder


GLK4-600H, HongEr Machine's Decoiler Straightener Servo Feeder 3 in 1 Machine for High Tensile Metal Materials, is very suitable for metal parts such as brake pads.

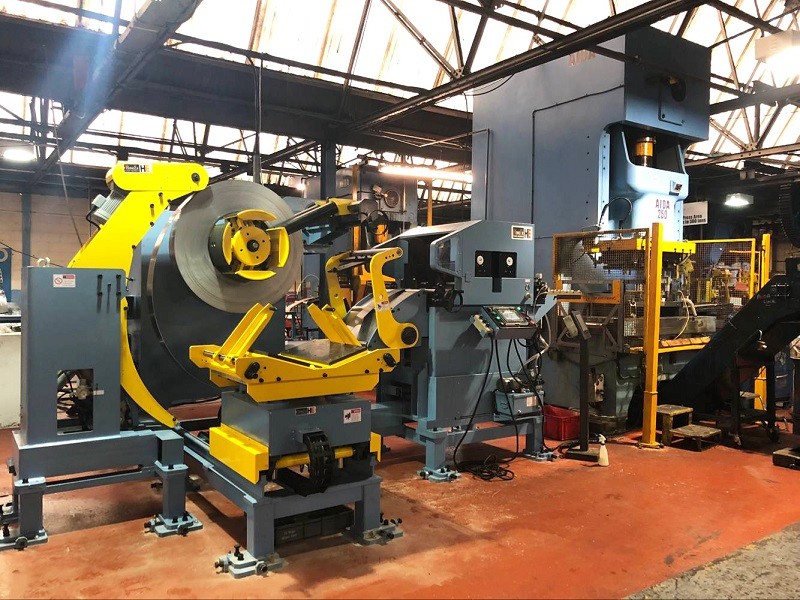

HongEr Machine Decoiler Straightener Feeder 3 in 1 Machine GLK5-H working with High Tensile Metal Materials for Brake Pads Manufacturing

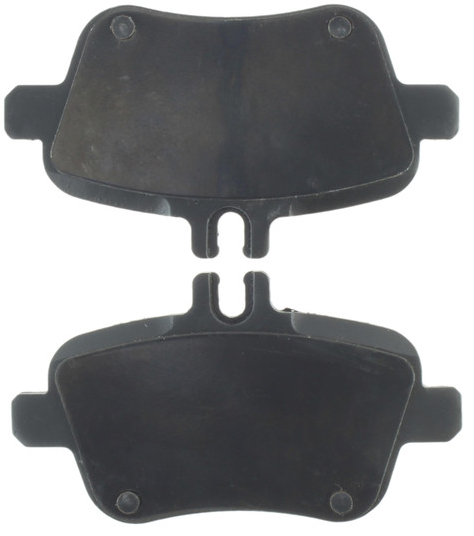

Brake Pads

Decoiler Straightener Feeder Power Press Machines for Brake pads manufacturing


HongEr Machine Wraps the GLK series in nylon properly, and then load them into containers (20 GP or 40 GP depending on the size of the machine.


HongEr Machine delivers the machines via sea freight. It can take about 5-60 days to arrive depending on the distance. You can choose FOB Shenzhen or CIF to your port.

Lead time

HongEr Machine manufactures GLK series within 20-80 workdays, depending on the model.

If you are interested, please freely send us an email to: export@he-machine.com
