HongEr Decoiler Straightener Servo Feeder 3 in 1 Machine GLK4-600

Group Metal Strip Feeder
Min. Order 1 set
Terms of Payment L/C, T/T
Update Time 2018-12-09
Item specifics
DecoilerHydraulic Expansion, Motorized, Automatic
StraightenerGear drive
Servo FeederYaskawa Driver and Yaskawa Motor
Oiling MachineTo lubricate and cool down the coil sheet, prolongs the lifespan of dies
ShearerTo cut off coil threads
Coil WeightUp to 5 tons weight
Coil Width100-600 mm wide
Coil Thickness0.6-6.0 mm thick
Auxillary rollersEquipped
Rollers qualityMaterial :GCr15 high quality bearing material. Thickening plating and Grinding processing. Hardness: HRC60-65
Description

Specifications of GLK4-600


Decoiler Straightener Feeder 3 in 1 Machine for High Tensile Metal Materials

Model GLK4-600
Applicable material SPCC
Material strength σb Suitable Coil Width 70-600mm
Applicable material thickness 0.6-6.0mm
Feeding length 0-9999.99mm
Inside coil diameter Φ475-520mm
Max.coil outside diameter Φ1200mm
Max.coil weight 5T
Condition temperature RH Power

Machine Picture for Reference

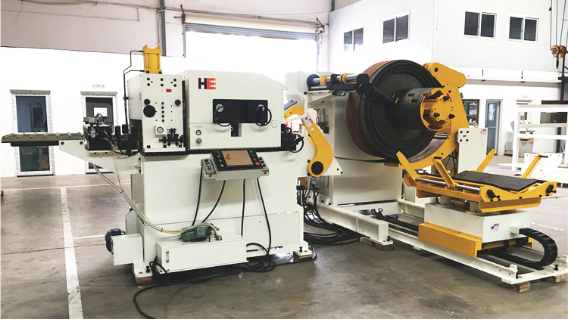

HongEr Decoiler Straightener Feeder 3 in 1 Machine GLK4-600H for High Tensile Metal Sheets 6.0 mm Thick


Coil Car

High Quality Coil Car with 4 Columns Hydraulic Lifting

Coil Pressing Arm with Motorized Rubber Roller on Decoiler

HongEr Decoiler Loading Mandrel

Straightener, NC Servo Feeder and Hydraulic Shearer Unit

HongEr Servo Straightener Feeder

Hydraulic Shearer Unit Behind NC Servo Feeder

HongEr Hydraulic Shearer after Servo Feeder

Application

GLK4-600, HongEr Machine's Decoiler Straightener Servo Feeder 3 in 1 Machine for High Tensile Metal Materials, is very suitable for metal parts in automotive industry.


HongEr Machine Decoiler Straightener Feeder 3 in 1 Machine GLK5-H working with High Tensile Metal Materials for Brake Pads Manufacturing

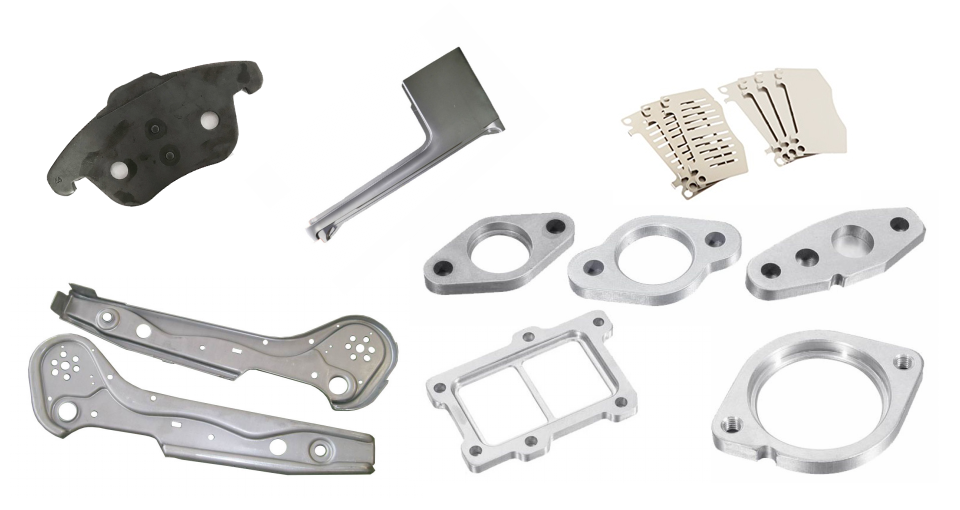

Automotive Metal Parts Manufactured by Metal Stamping

Decoiler Straightener Feeder Power Press Machines for Brake pads manufacturing

Packaging

HongEr Machine Wraps the GLK series in nylon properly, and then load them into containers (20 GP or 40 GP depending on the size of the machine.

Shipping

HongEr Machine delivers the machines via sea freight. It can take about 5-60 days to arrive depending on the distance. You can choose FOB Shenzhen or CIF to your port.

Lead time

HongEr Machine manufactures GLK series within 20-80 workdays, depending on the model.
