HongEr Machine

HongEr Decoiler Straightener Servo Feeder 3 in 1 Machine GLK2-800

Group Metal Strip Feeder
Min. Order 1 set
Terms of Payment L/C, T/T
Update Time 2018-12-09
Item specifics
DecoilerHydraulic Expansion, Motorized, Automatic
StraightenerGear drive
Servo FeederYaskawa Driver and Yaskawa Motor
Oiling MachineTo lubricate and cool down the coil sheet, prolongs the lifespan of dies
ShearerTo cut off coil threads
Coil WeightUp to 5 tons weight
Coil Width100-800 mm wide
Coil Thickness0.3-3.2 mm thick
Auxillary rollersEquipped
Rollers qualityMaterial:GCr15 high quality bearing material. Thickening plating and Grinding processing. Hardness: HRC60-65
Description

Specifications of GLK2-800


Decoiler Straightener Feeder 3 in 1 Machine for Coiled Metal Sheets

Applicable material Material strength Suitable Coil Width 50-800mm
Applicable material thickness 0.3-3.2mm
Feeding length 0-800mm
Inside coil diameter Φ480-520mm
Max.coil outside diameter Φ1600mm
Max.coil weight 5 tons
Condition temperature RH Power AC380V±10%, 50HZ ±2%, 3PH, 5 Lines (can be changed according to your requirement)
Pneumatic pressure 0.5Mpa
Running direction  From left to right
Total Power About 6 kW(only for reference)
The Equipment size L: 3270mm, W: 2454mm, H: 2234mm

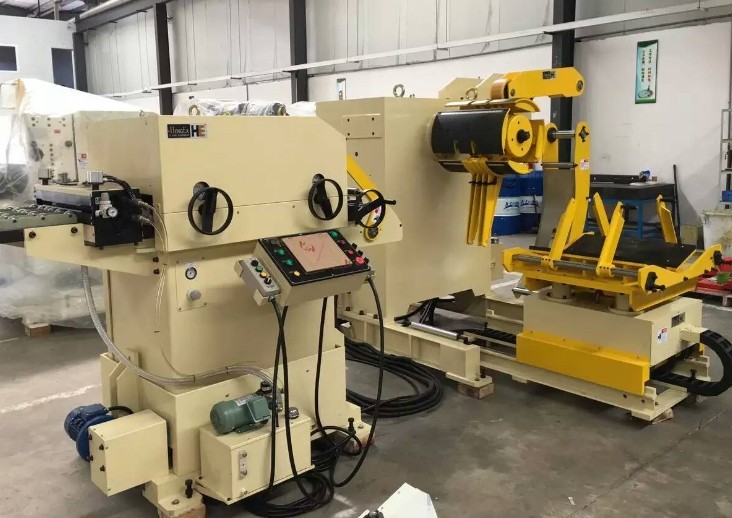

Machine Picture for Reference

HongEr Decoiler Straightener Feeder 3 in 1 Machine GLK4-600H for High Tensile Metal Sheets 6.0 mm Thick

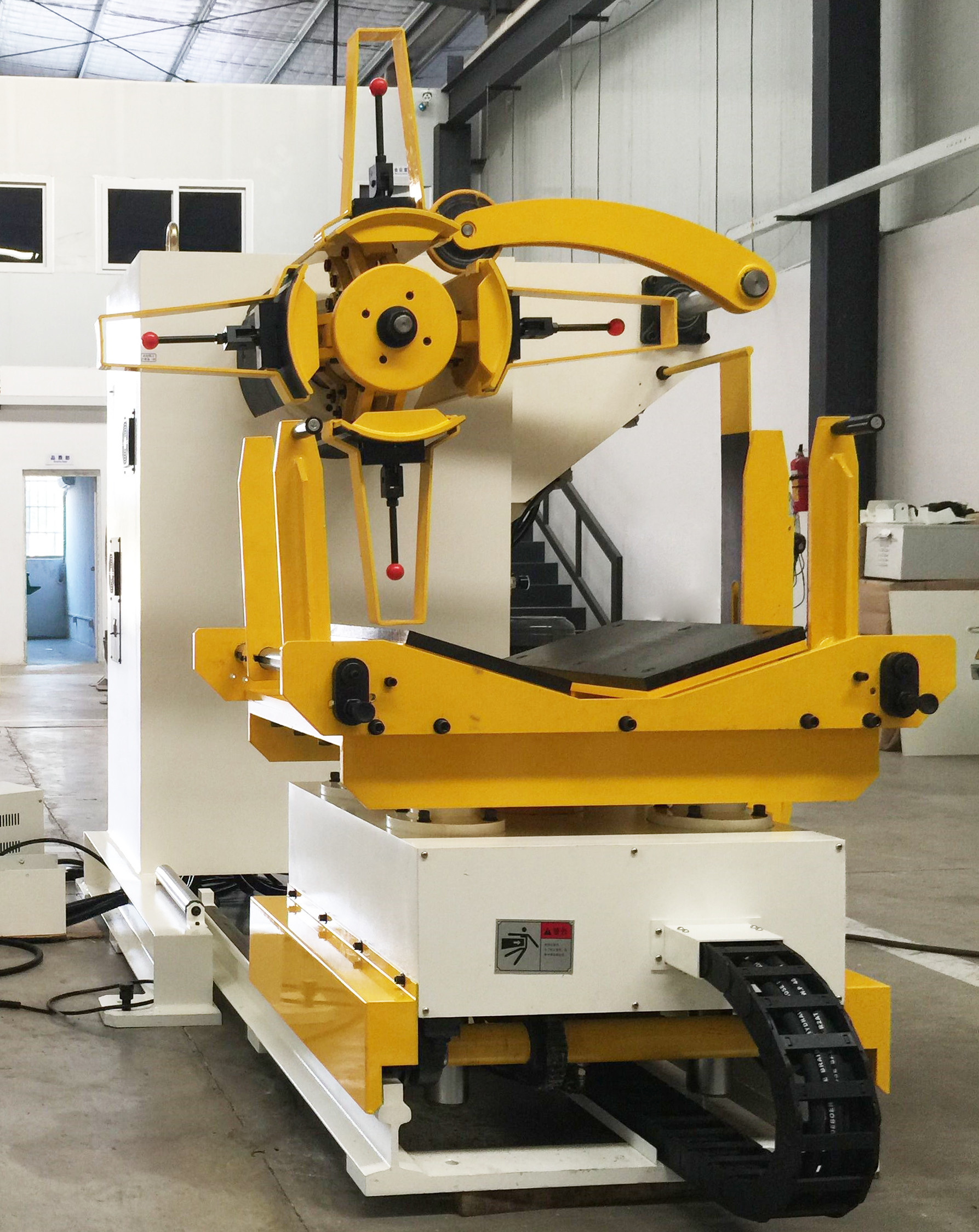

Coil Car

High Quality Coil Car with 4 Columns Hydraulic Lifting

Coil Pressing Arm with Rubber Roller, Hydraulic Expansion

HongEr Decoiler Loading Mandrel

Straightener, NC Servo Feeder and Oiling Unit

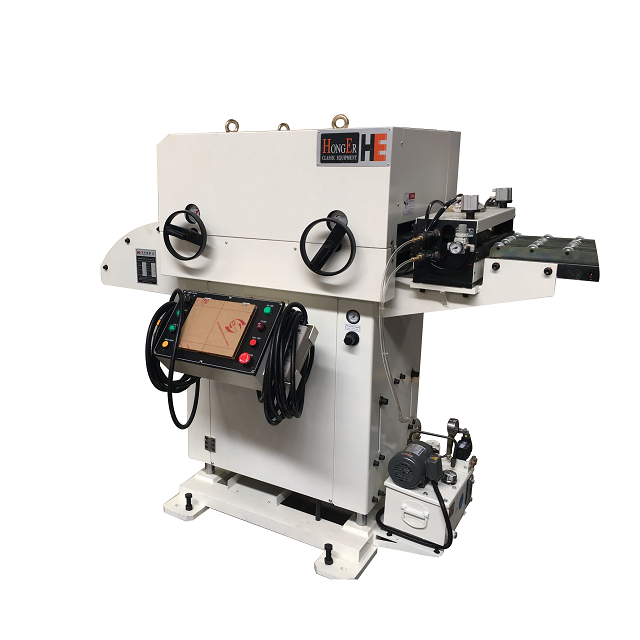

HongEr Servo Straightener Feeder

Taiwanese Touch Screen Operation

HongEr Hydraulic Shearer after Servo Feeder

Application

GLK2-800, HongEr Machine's Decoiler Straightener Servo Feeder 3 in 1 Machine for coiled metal sheets, is very suitable for metal parts in all industries, such as automotive, electronics, furniture & housewares, construction and other hardwares.

Below is a picture of our customer manufacturing LED metal parts with GLK2

HongEr Machine Decoiler Straightener Feeder 3 in 1 Machine GLK5-H working with High Tensile Metal Materials for Brake Pads Manufacturing

Automotive Metal Parts Manufactured by Metal Stamping

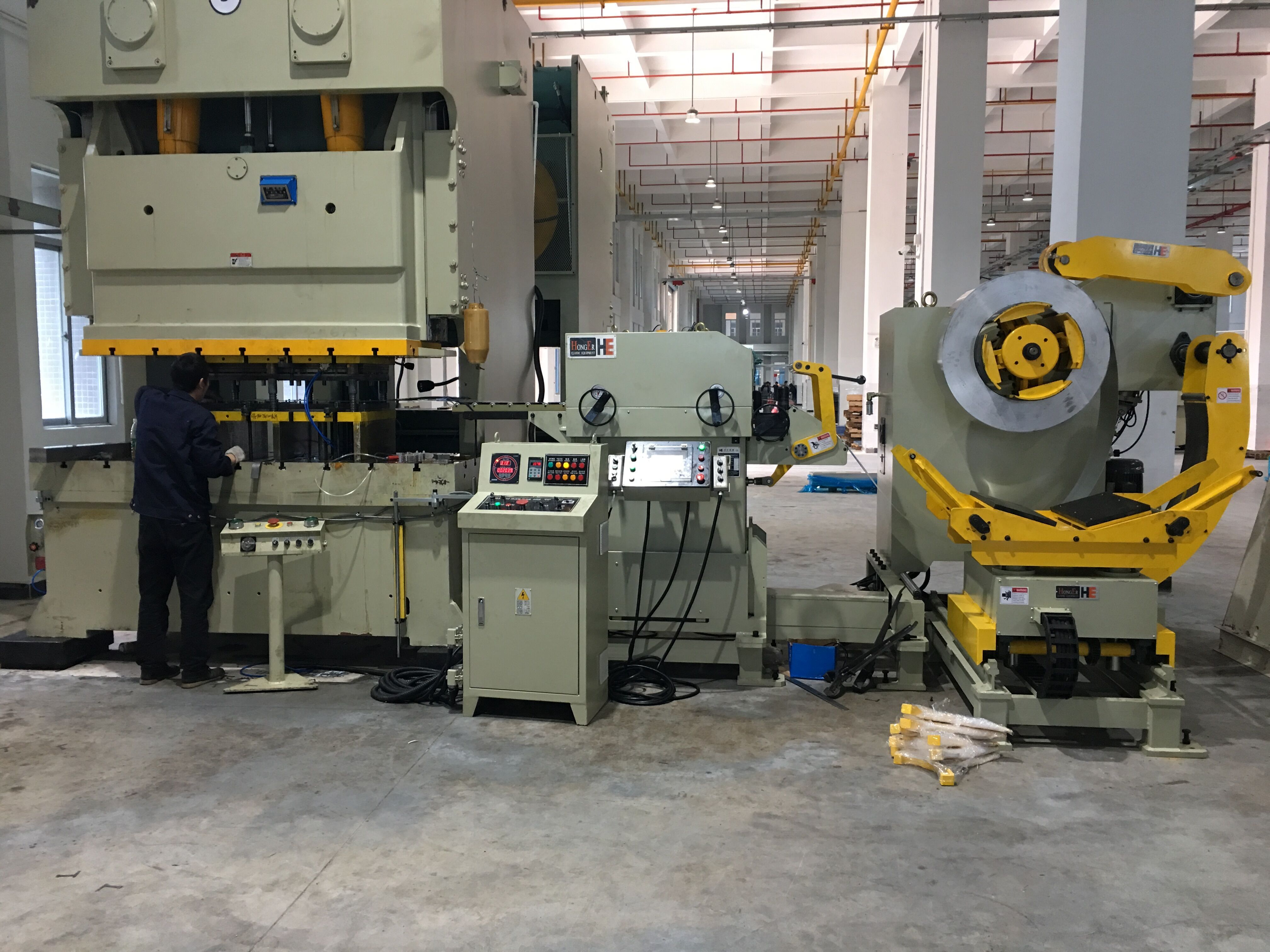

Decoiler Straightener Feeder Power Press Machines for Brake pads manufacturing

Packaging

HongEr Machine Wraps the GLK series in nylon properly, and then load them into containers (20 GP or 40 GP depending on the size of the machine.

Shipping

HongEr Machine delivers the machines via sea freight. It can take about 5-60 days to arrive depending on the distance. You can choose FOB Shenzhen or CIF to your port.

Lead time

HongEr Machine manufactures GLK series within 20-80 workdays, depending on the model.

If you are interested, please freely send us an email to: export@he-machine.com
