HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F)

Group Metal Strip Straightener
Min. Order 1 set
Terms of Payment L/C, T/T
Update Time 2018-12-09
Item specifics
Metal sheet thickness0.5-2.0 mm thick
Metal sheet inner diameter460-520 mm
Metal coil weight1.5 tons
Metal coil widthUp to 400 mm
ExpansionManual or Hydraulic for option
Straightener RollerØ32mm*19pcs
Roller PressurePneumatic rods
Roller adjustmentEccentric turbine worm adjusting
Decoiler motorMotorized
InverterDelta Brand, from Taiwan
Description

HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F)


Model: GL-400F


Max. Coil Width 400 mm
Strip Thickness 0.5-2.0 mm
Coil I.D. 475-520 mm
Coil O.D. 1200 mm
Loading Capacity 1500 kgs
Expansion Manual
Decoiler Motor 2 HP
Decoiler Inverter Yes
Straightener Motor 2 HP
Straightener Inverter Yes
Rollers Drive Gear driving on both upper and lower rollers
Sensor of sheet arc Sensor stand
Pinch Rollers Amount φ48mm*2 pcs
Straightener Rollers Amount φ32mm*19 pcs (9 pcs up, 10 pcs down)
Rollers Quality Material: GCr15. Hardness HRC 58-62°
Decoiling and Straightening Direction From left to right
Roller Pressing Pneumatic Rod
Roller Adjustment Eccentric turbine worm adjusting
Inverter Delta, Taiwan
Feeding Speed 16m/min

For other models, please consult our professionals: export@he-machine.com.

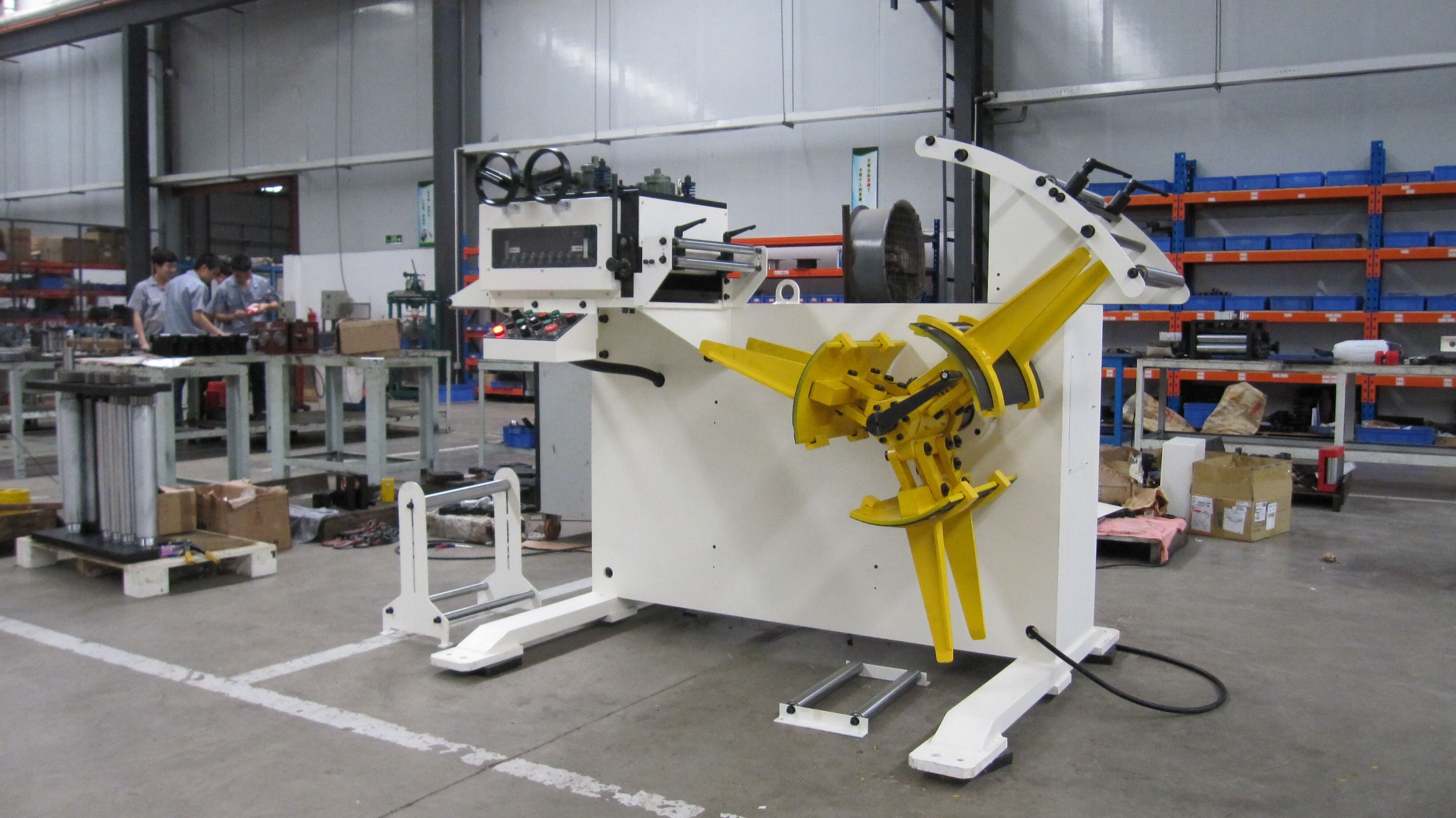

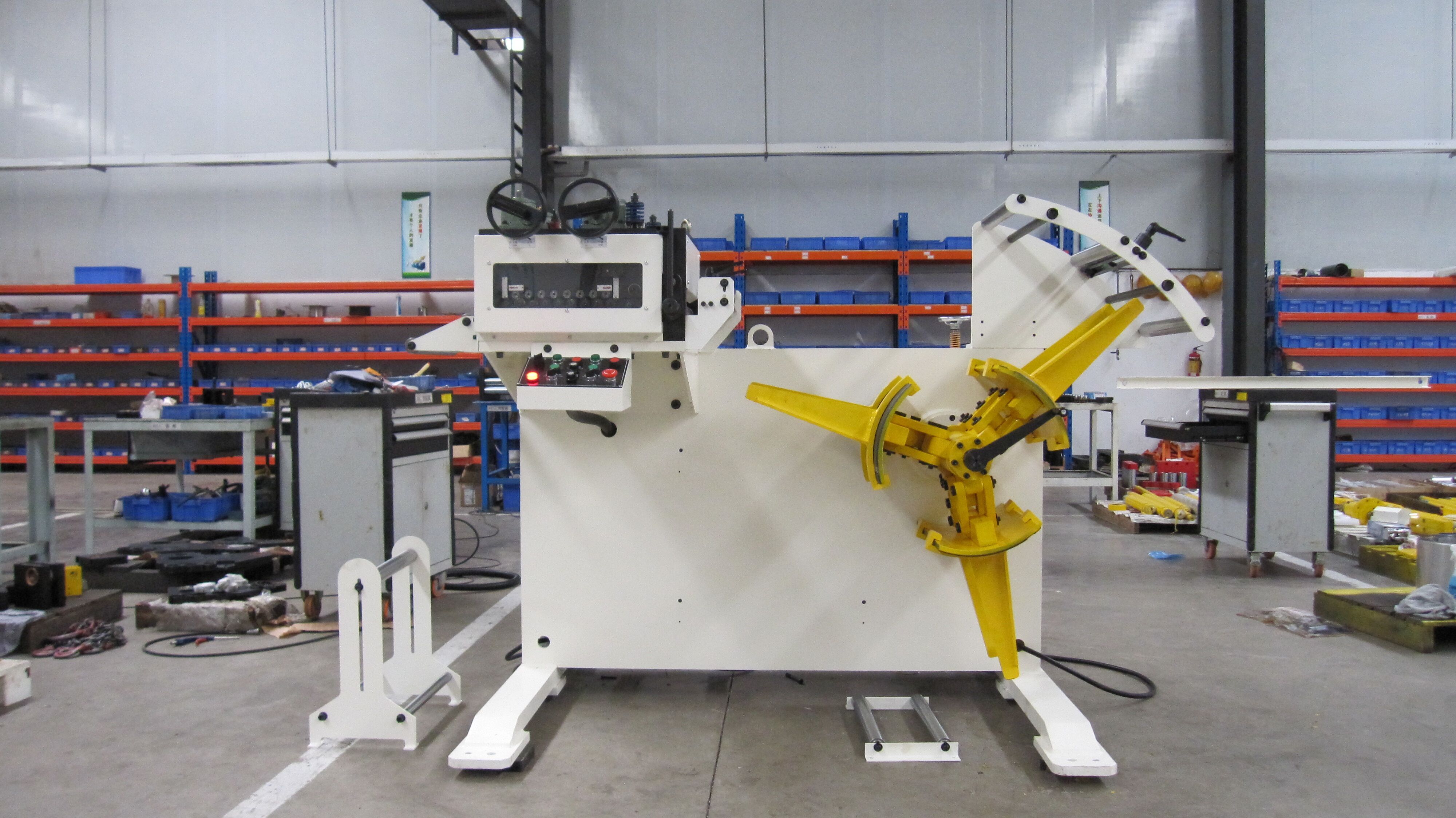

Metal sheet / strip straightener / leveler with decoiler / straightener


Model: GL-400F

HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F)

HongEr Metal Sheet High Precision Straightener with Decoiler

HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F)


HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F)

Model: GL-400F

HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F) HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F) HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F) HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F) HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F) HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F) HongEr Metal Sheet High Precision Straightener with Decoiler (GL-400F)

Application

Metal sheet / strip straightener / leveler with decoiler / straightener

Model: GL series

Metal stamping line for loud speaker mesh production, with straightener and decoiler 2 in 1 machine GL-300 from HongEr Machine, NC servo feeder RNC-300 from HongEr Machine, power press APA-80 from HongEr Machine, and dies from HongEr Machine. This line is for France. It has conveyor, safe gate and safe fence too.

Metal sheet / strip straightener / leveler with decoiler / straightener

Packaging

HongEr Machine Wraps the GL-F series in nylon properly, and then fix them into wooden boxes.

Shipping

HongEr Machine delivers the machines via sea freight. It can take about 5-60 days to arrive depending on the distance. You can choose FOB Shenzhen or CIF to your port. We suggest CIF.

Lead time

HongEr Machine manufactures GL series within 5-20 workdays, depending on the model.
