HongEr High Precision Sheet Metal Straightener for 2 mm sheets

Group Metal Strip Straightener
Min. Order 1 set
Terms of Payment L/C, T/T
Update Time 2018-12-09
Item specifics
Metal sheet thickness0.3-2.0 mm thick
Suitable materialSteel, gi, cr, hr, other metal materials
Straightening speed0-16 m/min
Metal sheet width50-600 mm wide
straightener rollersdiameter 40 mm * 15 pcs
pinch rollersdiameter 65 mm * 2 pcs
Roller adjustmentEccentric turbine worm adjusting
power2.2 kW
speed controlelectronic induction
transmission methodchain precision gear
Description

High Precision Sheet Metal Straightener, JM4-600


Model: JM4-600


High Precision Sheet Metal Straightener, JM4-600
Material width 30-600 mm
Material thickness  0.3-2.0 mm
Pinch rollers Ø65×2
Levelling rollers Ø40x15, up 7 / down 8
Rollers quality High precision bearing steel, heat treated, hard chrome plated, grinded. Hardness HRC 58-60°
Reducer 80#1:30
Leveling speed   20m/min
Leveling accuracy  100mm*100mm Leveling adjustment   Worm gear adjustment
Adjustment Reference  Dial indicator, scale
Transmission method Chain precision gear
Speed control Electronic induction
Speed adjustment Inverter (Shilin 1.5kW)
Motor Power 2.2 kW
Operating Voltage 380V/220V

For other models, please consult our professionals: export@he-machine.com.

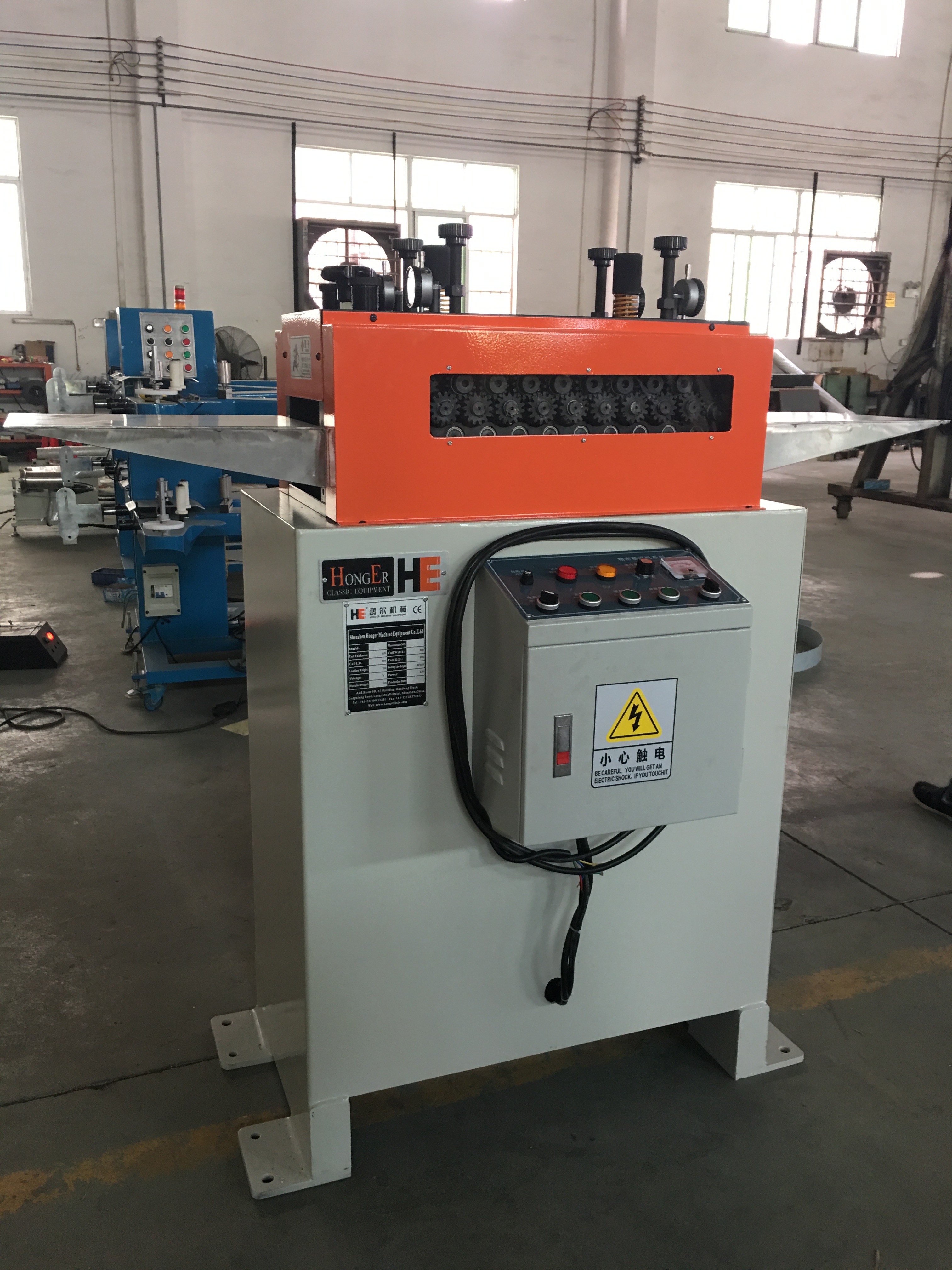

HongEr Metal Sheet Precision Straightener 2.0mm

Model: JM4 series

HongEr High Precision Sheet Metal Straightener for 2 mm sheets

HongEr Metal Sheet Precision Straightener 2.0mm

Model: JM4 series
HongEr High Precision Sheet Metal Straightener for 2 mm sheets
HongEr Metal Sheet Precision Straightener 4.5mm
HongEr High Precision Sheet Metal Straightener for 2 mm sheets
Application

HongEr High Precision Sheet Metal Straightener for 2 mm sheets

Model: JM4 series

High precision sheet metal straightener JM4-200 from HongEr Machine to United States.

HongEr High Precision Sheet Metal Straightener for 2 mm sheets

Packaging

HongEr Machine Wraps the straightener in nylon properly, and then fix them into wooden boxes.

Shipping

HongEr Machine delivers the machines via sea freight. It can take about 5-60 days to arrive depending on the distance. You can choose FOB Shenzhen or CIF to your port. We suggest CIF.

Lead time

HongEr Machine manufactures straightener within 5-20 workdays, depending on the model.

If you are interested, please freely send us an email to: export@he-machine.com
